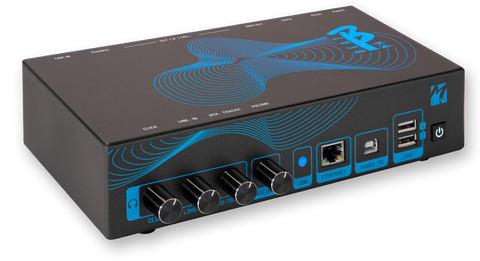

B.BeatX reads and plays Music files in WAV, Multitrack Audio, Stems, Midi, Video Mp4, Mov and JPG formats. You can use Backing Tracks up to 16 Mono tracks or 8 Stereo tracks. B.BeatX can store a high number of Backing Tracks. It has a VIDEO output to transmit videos synchronized to the music or lyrics for on-stage prompter. You can upload sheet music and display it on wirelessly connected Smart Devices. B.BeatX has a digital mixer to adjust the 16 audio tracks, 8 separate outputs, click and headphone management. Remote control via App via Wireless or cable, Midi Clock send.
When used on its own, B.BeatX is managed remotely by an App that runs on Tablets and Smartphones. Or it is "managed" by the connected B.Beat, via LAN connection.
DIGITAL MIXER.

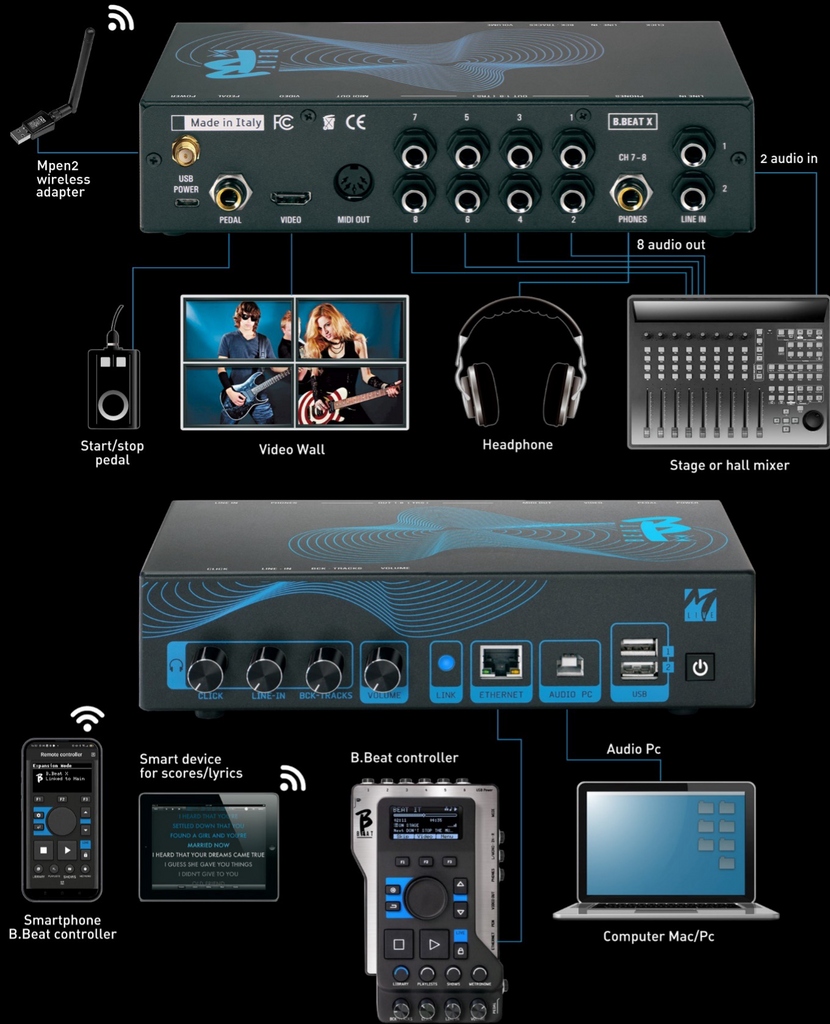

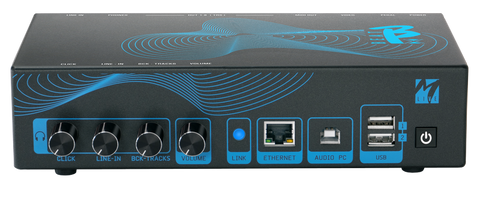

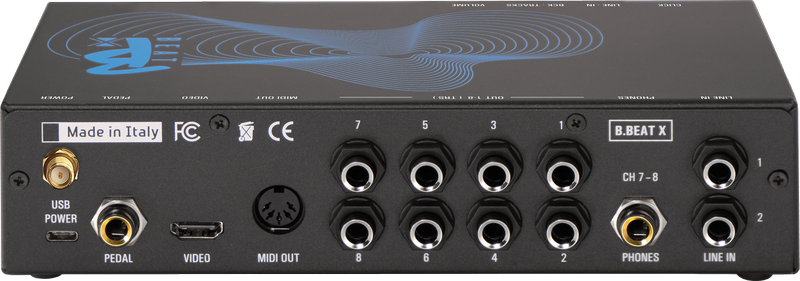

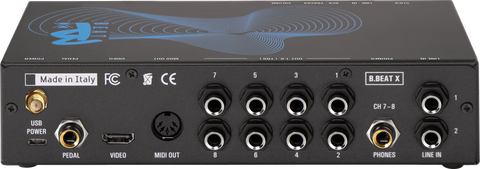

B.BeatX Includes a digital mixer to handle 16 tracks on 8 separate outputs, 2 inputs, a Headphone output for Click*, return from Mixer and Backing tracks. With the 8 outputs the tracks that make up the Backing Tracks can be sent to the Stage Mixer. From any source a Stereo or Mono audio signal can come back to B.Beat through the 2 available inputs, in addition B.Beat recognizes the Click track and can channel it to any of the 8 available outputs and at the same time to the headphone output*. When the headphone output is activated with 4 potentiometers, the musician can balance in real time what he wants to hear in the headphones during the performance.
*when the headphone output is activated it uses two audio channels, so the available outputs become 6.r during the performance.
With the 6 outputs, the tracks that make up the Backing Tracks can be sent to the Stage Mixer.
From any source a Stereo or Mono audio signal can come back to B.Beatthrough the two inputs, in addition B.Beat recognizes the Click track and can route it to any of the 6 available outputs and simultaneously to the headphone output.
B.BEAT EXPANSION

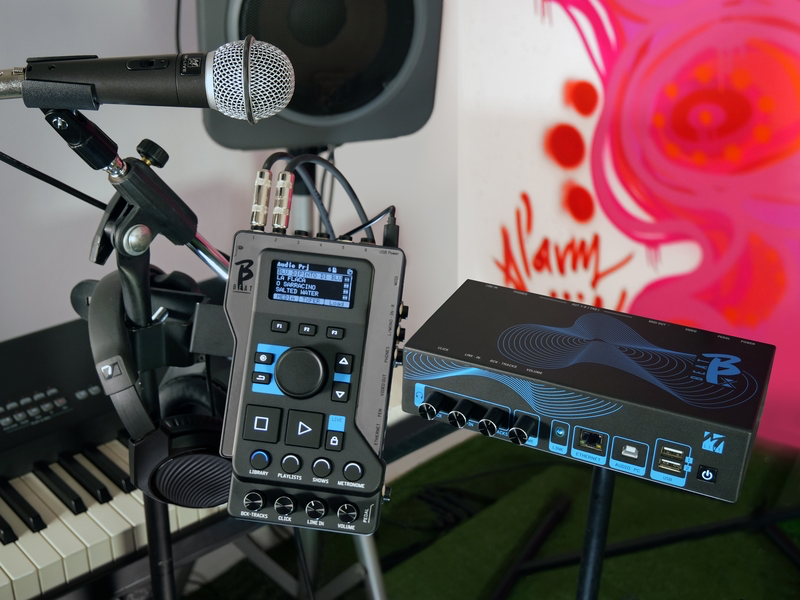

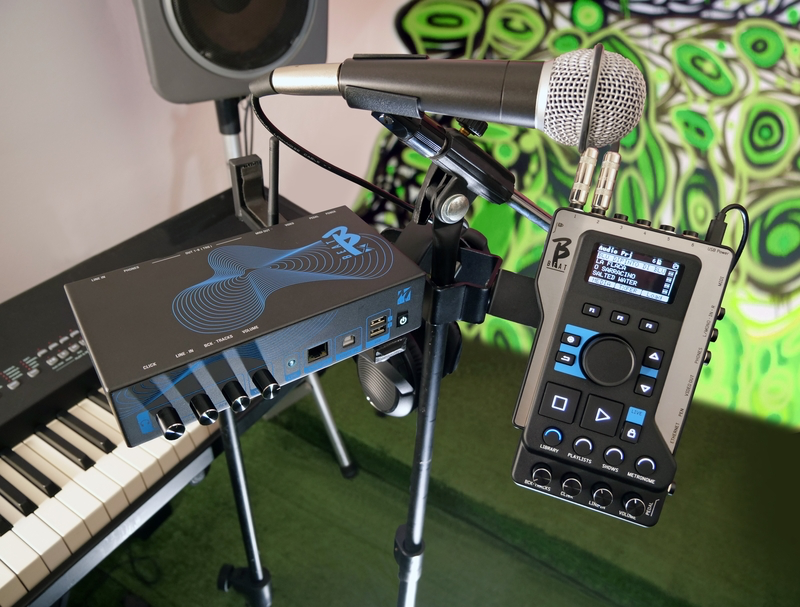

B.BeatX can work in sync with B.Beat and B.Beat Pro16. This means that if you use B.Beat + B.BeatX you can build audio projects of up to 32 mono tracks (or 16 stereo tracks) and you can use for a single project 6 + 8 audio out, a total of 14 outputs. In addition, the two VIDEO outputs of the two machines allow you to have a Video track and a track for the Hunchback (Prompter for Lyrics).
If, on the other hand, you use B.BeatX in conjunction with B.Beat pro16 you can have 16+16 audio tracks that will be handled on 24 audio out.
