LITE is MIGHT

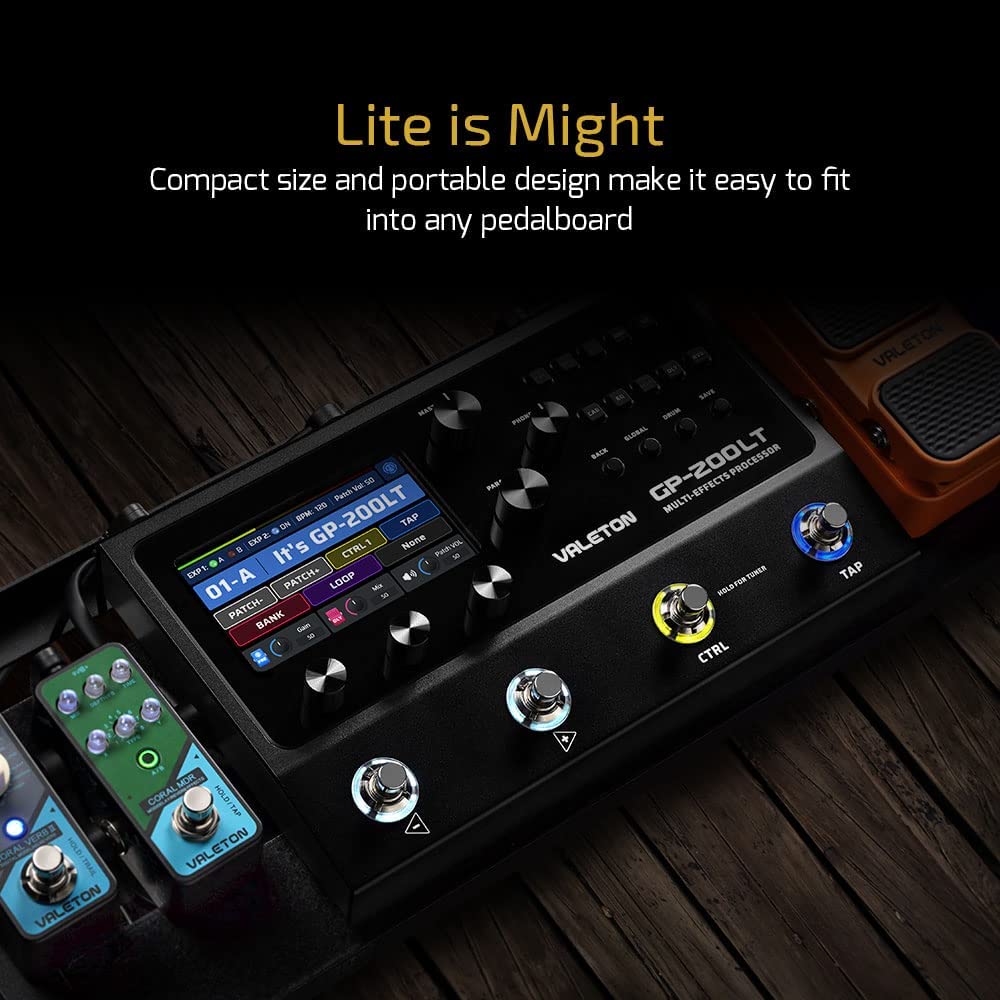

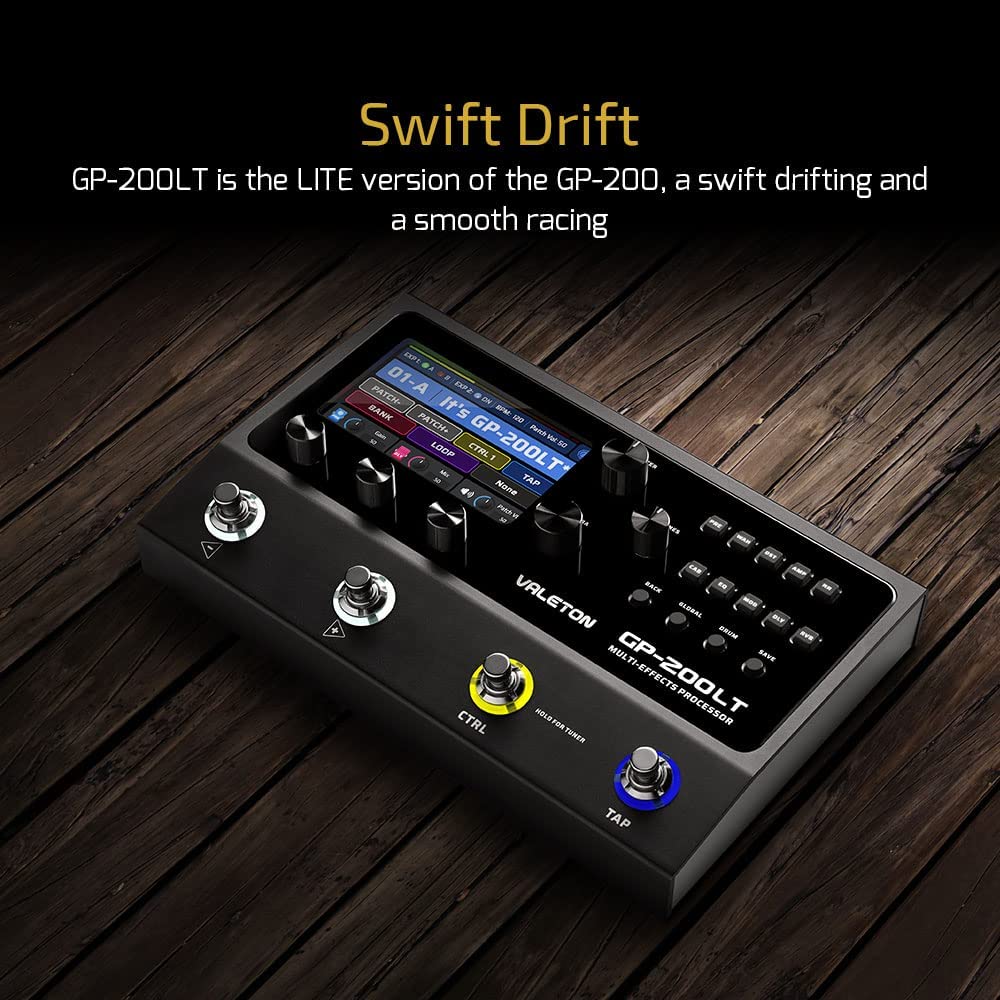

GP-200LT is the LITE version of the GP-200, a swift drifting, a smooth racing. With its compact size and portable design, this burden lifter allows you to pick out your favorite sound and clear out just enough physical space, making it easy to fit into any pedalboard, and help you mix and match with any setup you prefer.
Features
- Compact size, uncompromised sound quality
- The same HD modeling technology and platform used on the GP-200 deliver the pure, organic tones
- 24-bit 44.1kHz audio conversion
- Over 240 high quality effects
- 140+ legendary guitar/bass/acoustic amps, cabinets
- 100+ dynamic/distortion/frequency/modulation/delay/reverb effects
- Supporting 20 user IRs storage
- 256 patch slots (100 factory, 156 user)

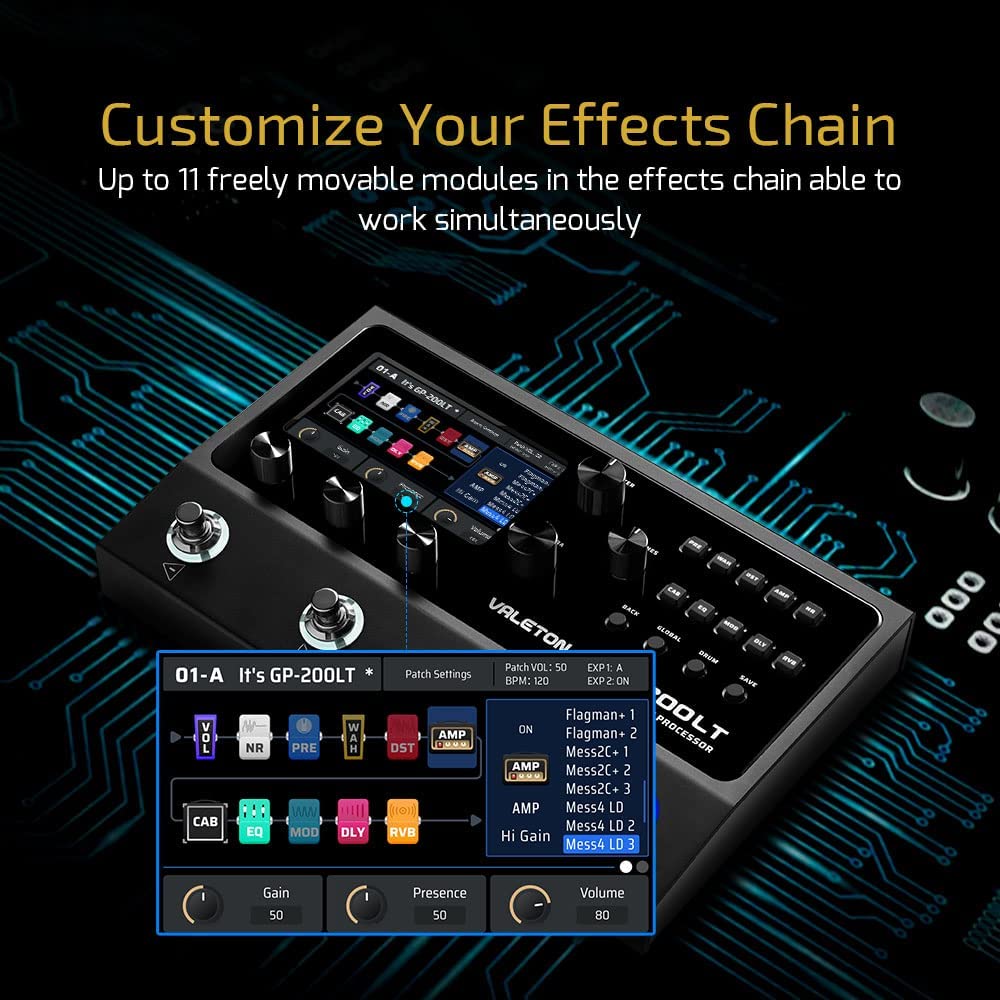

- Up to 11 freely movable modules in the effect chain able to work simultaneously
- 180-second looper
- 100 high quality drum patterns
- Sensitive built-in chromatic tuner
- 4.3-inch TFT LCD presents an intuitive, user-friendly multi-language UI
- 4 customizable LED footswitches with 3 footswitches templates, applicable for various situations
- Independent headphone volume knob, making GP-200LT a perfect desktop effects processor/audio interface

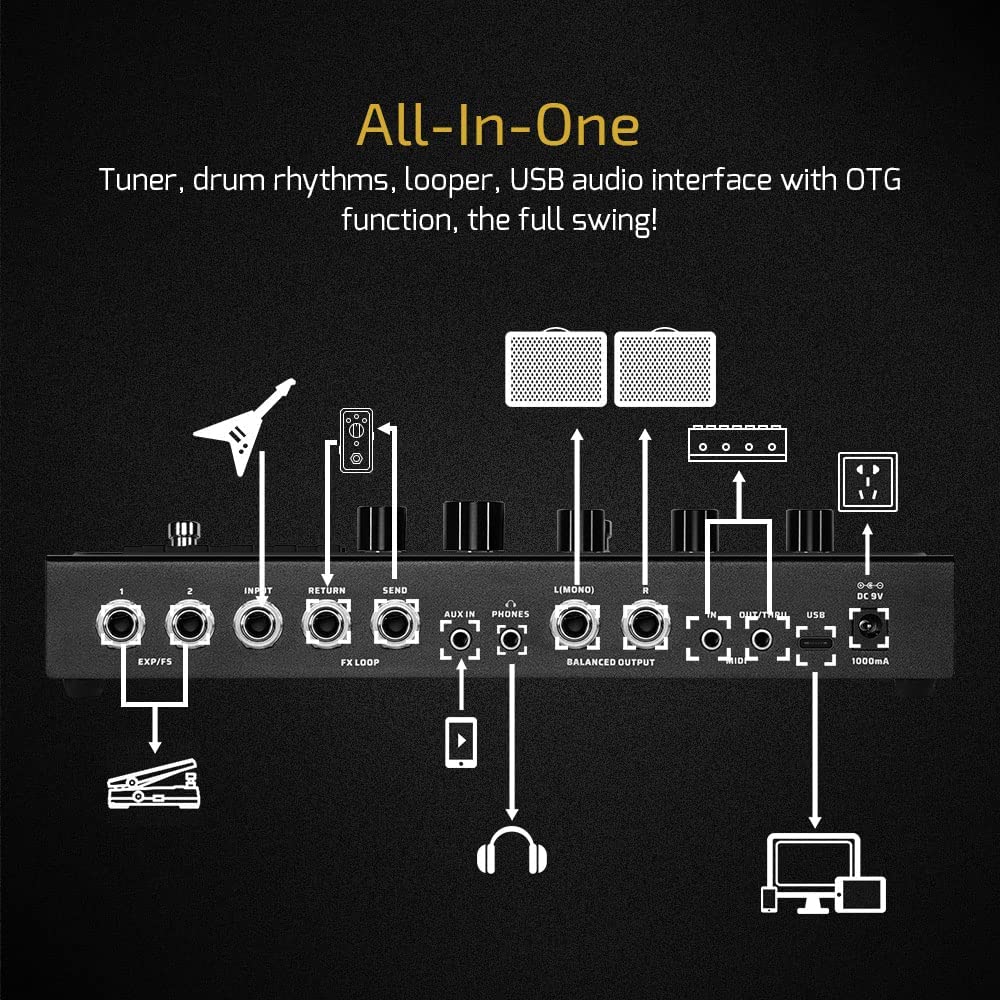

- Diverse I/Os matching with diverse needs
- USB Type-C connection audio interface compatible with Win/Mac/iOS/Android systems
- 6-in 4-out USB Audio supports Re-amp and Loopback
- Intuitive Win/Mac editor
- Rugged cast metal chassis
- DC 9V power supply
Specifications
A/D/A Converter: 24-bit high performance audio
Sampling Frequency: 44.1 kHz
SNR: 110dB
Module: 11, can be used simultaneously
Patch Memory: 256 Patch slots, 100 Factory Patches
Looper: 180 seconds of record time
Drum Machine: 100 Patterns
MIDI(IN/OUT/THRU): 1/8″ TRS MIDI connectors
Analog Input Connections
Guitar Input: 1/4″ Unbalanced (TS)
Input Impedance: 4.7M Ohms (A.GT), 1M Ohms (E.GT), 10k Ohms (Line)
Return Input: 1/4″ Unbalanced (TS)
Return Input Impedance: 100k Ohms
Aux Input: 1/8″ Stereo (TRS)
Aux Input Impedance: 10k Ohms
Analog Output Connections
L/R Balanced Outputs: 1/4″ TS jacks
L/R Output Impedance: 1k Ohms
Send Output: 1/4″ Unbalanced (TS)
Send Output Impedance: 1k Ohms
Headphone Output: 1/8″ Stereo (TRS)
Headphone Output Impedance: 22 Ohms
Digital Connections
USB Port: USB 2.0 Type-C Port
USB Recording Specification
Sample Rate: 44.1 kHz
Bit Depth: Supports 16-bit or 24-bit
Size and weight
Dimensions: 253mm(W) x 165mm(D) x 56mm(H)
Unit Weight: 1.25 kg
Power
Power Requirements: DC 9V, 1000mA
