SMXX200

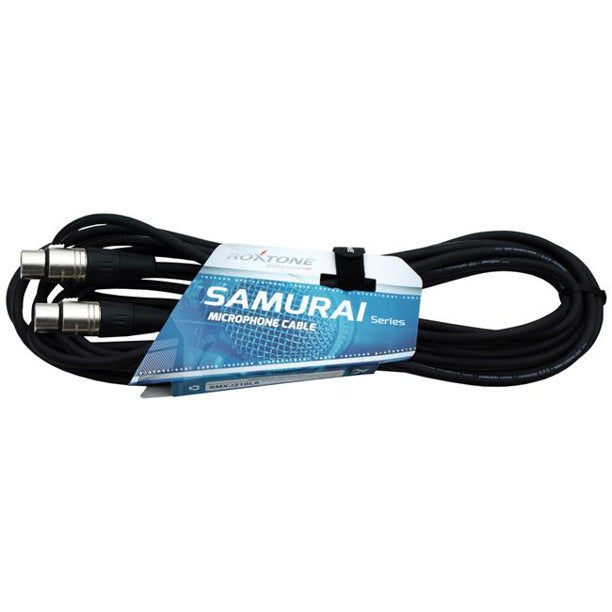

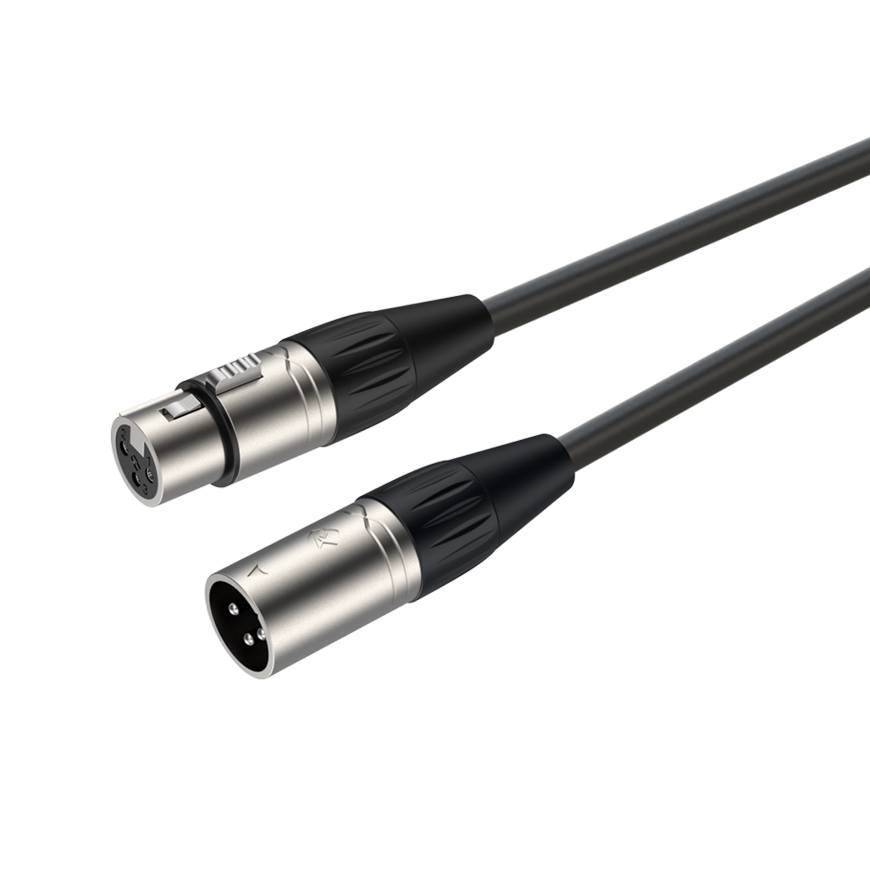

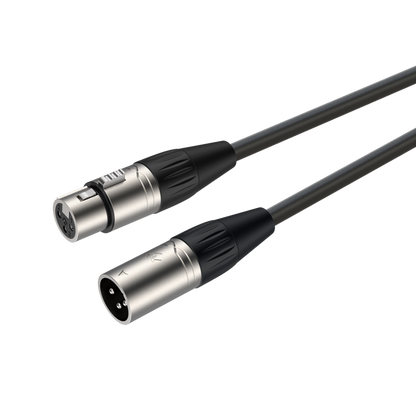

Microphone Cable XLR 3-pole female - XLR 3-pole male
Roxtone Samurai Series Microphone cables are constructed from premium-grade materials. Heavy duty Zinc alloy shell and PA 30% GR bushing. Dense shielding and molded strain reliefs keep handling noise at a minimum and extend its lifespan.
Specs:

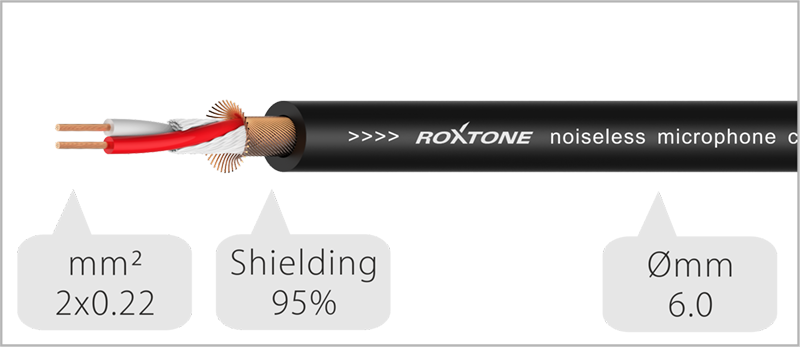

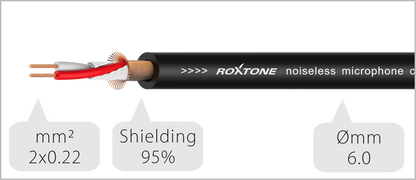

Cable
Jacket, diameter |
PVC 6.0 mm |
AWG |
24 |
No. of inner conductors |
2 x 0.22 mm² |
Copper strand per conductor |
28 x 0.10 mm |
Conductor insulation |
PE 1.40 mm |
Shielding |
copper spiral shielding with 80 x 0.10 mm |
Shielding factor |
95 % |
Temperature range |
min. -20°C |
Temperature range |
max. 70°C |
Connectors:
Shell |
Zinc alloy diecast |
Insert |
PA66 30% GR |
Contacts |
Brass |
Contacts plating |
Tin |
Strain-relief clamp |
POM |
Bushing |
PA 30% GR |
