THE PERFECT TONE FOR BLUES

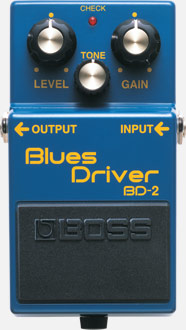

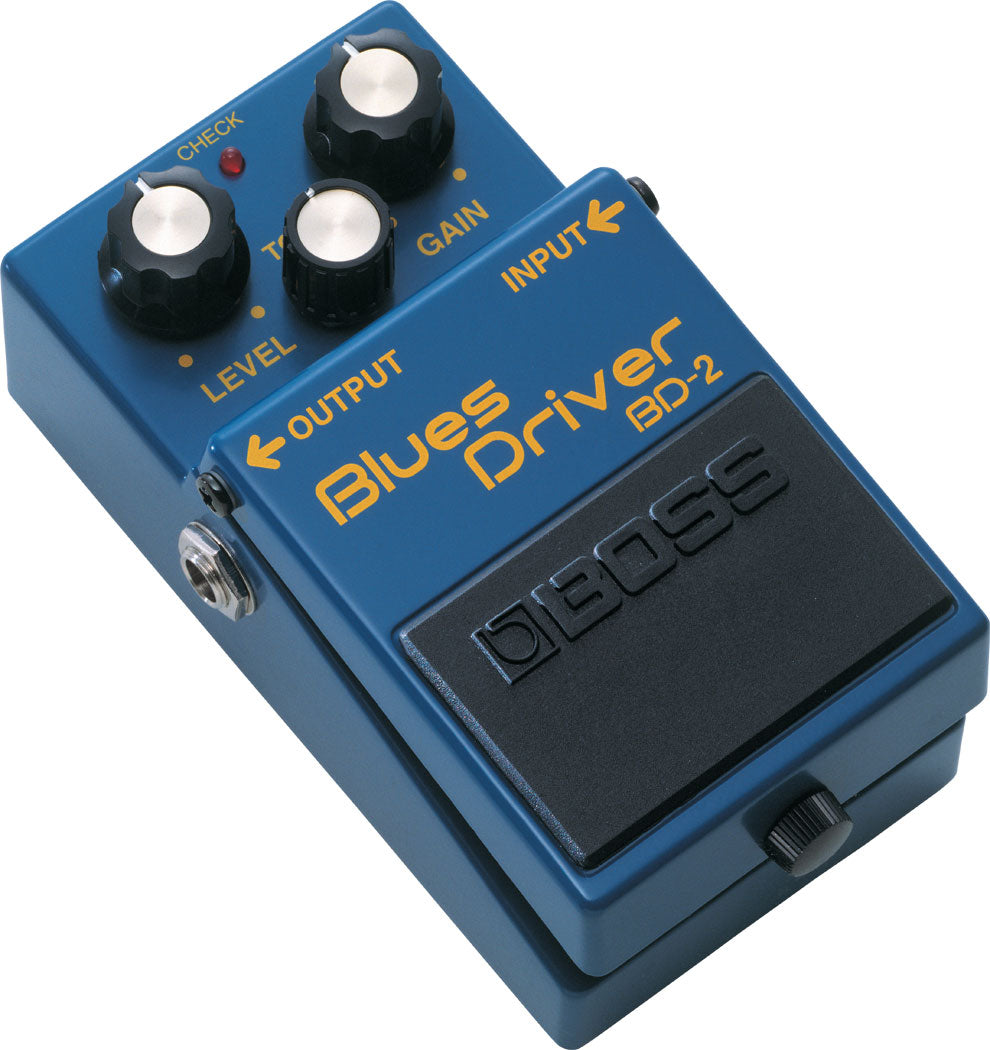

The BD-2 Blues Driver delivers the creamy, yet crunchy sound associated with great blues guitar. This popular pedal provides instant access to the kind of warm overdrive and emotive distortion usually reserved for 30-year-old tube amps.
- Classic "blues" guitar tones with tube amp simulation
- Warm distortion and overdrive
- Responds to nuance and volume changes
- AC adaptor or 9V battery operation
- BOSS five-year warranty
Nominal Input Level-20 dBu
Input Impedance1 M ohm
Nominal Output Level-20 dBu
Output Impedance1 k ohm
Recommended Load Impedance10 k ohms or greater
ControlsPedal switch
GAIN knob
TONE knob
LEVEL knob
Indicator CHECK indicator (Used for indication of check battery)
Connectors INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw 20 mA
Expected battery life under continuous useCarbon: Approx. 24.5 hours
Alkaline: Approx. 44 hours
*These figures will vary depending on the actual conditions of use.
Accessories Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Option (sold separately)AC adaptor (PSA series)
SIZE AND WEIGHT ( INCL. BATTERY )
Width73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight360 g
13 oz
